Saw
Bracket
This bracket is made of heavy 3/16" steel and can be moved easily
along any 2 x 6. Once placed, it rigidly locks with industrial grade knobs to prevent
movement. It can hold a saw of any size or weight.

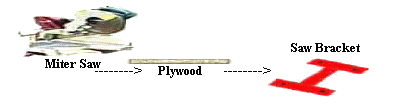

As all saws differ, this bracket is meant to be attached to a piece of
plywood or other material (not included) that bolts or screws to your
saw.
Back to Mighty MiteR
The Electrical Stand End
The electrical end contains 4 G.F.I. (Ground Fault Interrupted) outlets with attached 25
foot #14 gauge heavy-duty cord.
The cord is rated at 15 amps. and is capable of handling all miter saws, vacuums, drills,
sanders, and various other tools. The cord is attached with a strain-relief to prevent
damage. A device for storing the cord is attached.
It also includes an attachment for mounting a roller or cutting stop. Heavy-duty
adjustment knobs are attached for securing the bracket to any standard 2 x 6 (not
included).
The Opposite Stand End is similar to the
electrical end, but without the electric assembly.
Rollers
are made of 1 1/8" dia. stainless steel tubing. They are 6" long with
custom-made, free-rolling, dust-resistant bearings.
The bracket is made with
1/4" thick extra-heavy steel to eliminate damage.
Rollers allow trouble-free guiding of any width board. Roller height is
adjustable to fit all saws. Once adjustment is made for height, it is held in place with
adjustment knobs.
The roller and cutting stop are interchangeable. Both may be
placed on either end of the stand or a movable bracket.
Back to Mighty MiteR
Cutting stops
are adjustable to accommodate all saws. As an added feature, one end of the cutting stop
has a threaded micro stop for extremely precise settings. The opposite end has a
flat strap with holes to fasten a wood block to fit your particular saw. This is great for
making repetitive cuts.
Vertical and horizontal adjustment is 14" so the bracket doesn't
have to be removed each time a different length of cut is made.
If you're making repetitive cuts, and need to stop and make a longer cut, a handy feature
of the stop is that it can be quickly dropped or lowered out of position and put back in
place without re-measuring.
Knobs are industrial quality for lifetime use.
Bracket can be quickly removed and replaced any where on the
stand.
Back to Mighty MiteR
